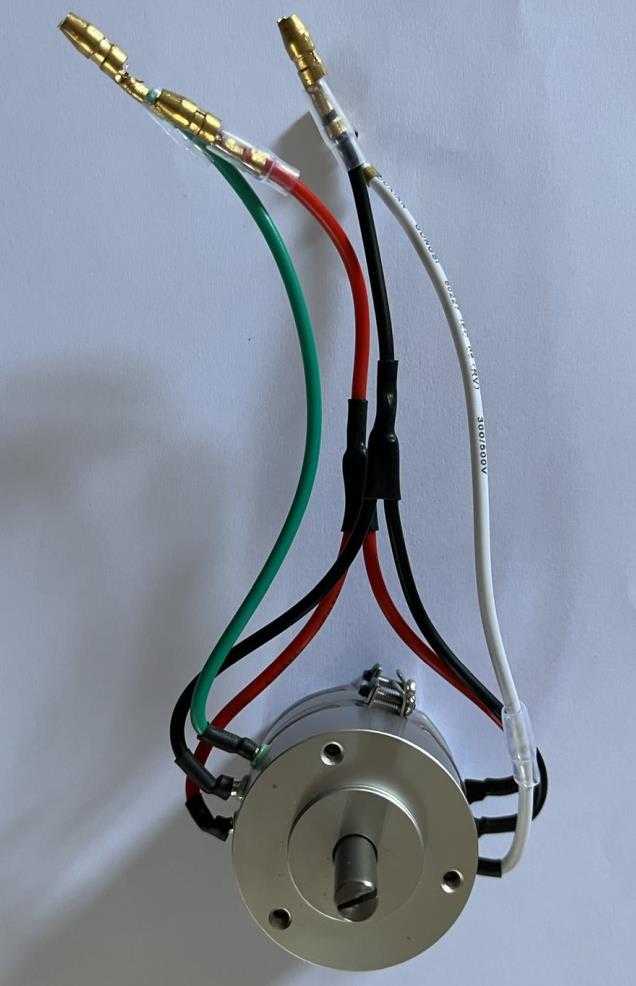

Crane Swing Angle Sensor-Potentiometer 1k 5k

Description Crane Swing Angle Sensor-Potentiometer. Diameter: 36.5mm / 45mmShaft Diameter: 6mmShaft Length: 17.4mm / Other lenghTotal Resistance: 0.5kΩ,1kΩ, 2kΩ, 3kΩ, 5kΩ,10kΩResistance Tolerance: ±15%Independent Linearity (%): 0.1,0.2,0.3,0.5,1.0Electrical Travel: 345°±2°Mechanical Travel: 360° EndlessPower Rating: 2W(70°C) FFOW(125°C)Temperature Coefficient of Resistance: ≤0.04%/°CInsulation Resistance: ≥1000M Ω(500VDC)Dielectric Strength: 500V(AC.RMS)1minSmoothing of Output: ≤0.05Working Temperature Range: -55°C 125°CStopper Strength: ≤1 Stock available. Please contact us for payment and delivery.
