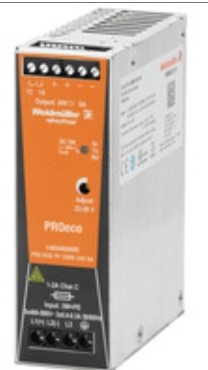

Input Data AC current consumption 1,26 A @ 230 V AC / 2,24 A @ 110 V AC AC input voltage range 85…264 V AC (derating at 100 V AC) Connection system Screw connection DC current consumption 0,39 A @ 370 V DC / 1,16 A @ 120 V DC DC input voltage range 80…370 V DC (Derating @ 120 V DC) Frequency range AC 47…63 Hz Input frequency 47…63 Hz Input fuse (internal) Yes Inrush current max. 40 A Recommended back-up fuse 4 A / DI, safety fuse 6 A, Char. B, circuit breaker 3…5 A, Char. C, circuit breaker Surge protection Varistor Input Connection Data Conductor cross-section, AWG/kcmil , max. 12 Conductor cross-section, AWG/kcmil , min. 26 Conductor cross-section, flexible , min. 0.5 mm² Conductor cross-section, rigid , max. 6 mm² Conductor cross-section, rigid , min. 0.5 mm² Connection system Screw connection Wire connection cross section, flexible (input), max. Output Data Capacitive load unrestricted Connection system Screw connection Nominal output current for Unom 5 A at 55 °C Output power 120 W Output voltage, max. 28 V Output voltage, min. 22 V Output voltage, note (adjustable via potentiometer) Overload protection Yes Parallel connection option yes, max. 5 Protection against inverse voltage Yes Ramp-up time ≤ 100 ms Rated output voltage 24 V DC ± 1 % Residual ripple, breaking spikes < 50 mVPP @ 24 V DC, IN Output Connection Data Conductor cross-section, AWG/kcmil , max. 12 Conductor cross-section, AWG/kcmil , min. 26 Conductor cross-section, flexible , max. 2.5 mm² Conductor cross-section, flexible , min. 0.5 mm² Conductor cross-section, rigid , max. 6 mm² Conductor cross-section, rigid , min. 0.5 mm² Connection system Screw connection Number of terminals 6 ( ,–,13,14)
